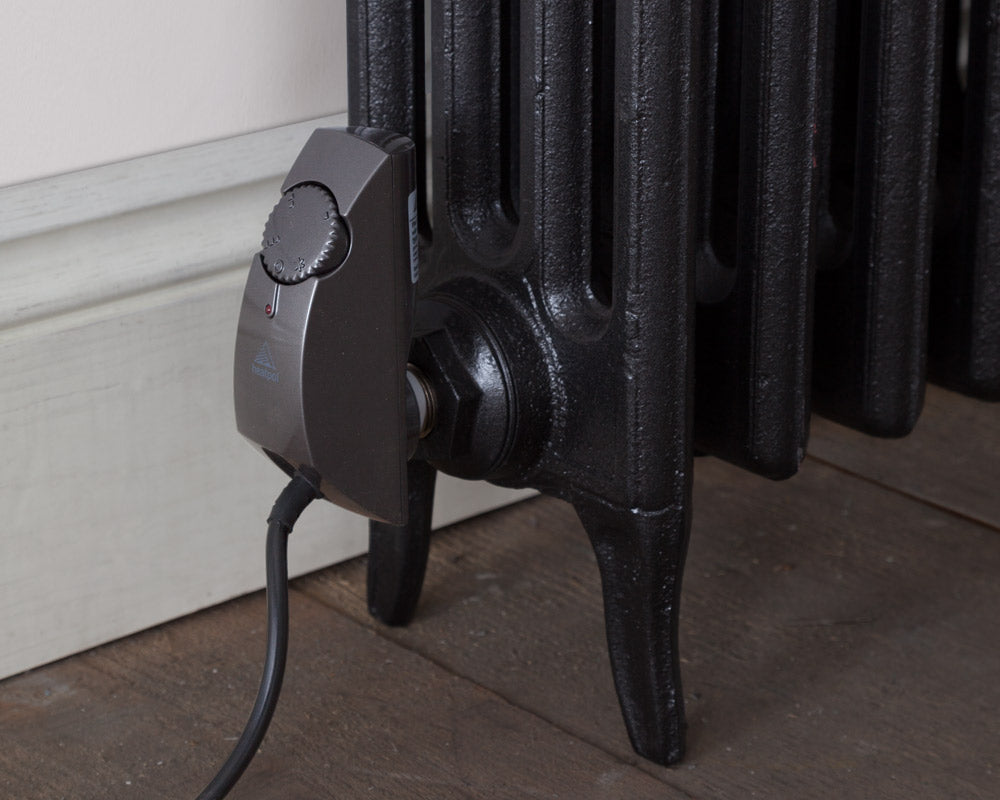

Carron Electric Radiator Heating Element, 1200W to 2000W
1200W / Anthracite / Not included
£179.00
Skip to product information
Carron
Carron Electric Radiator Heating Element, 1200W to 2000W
£179.00
Shipping calculated at checkout.
A Carron electric heating element screws into a water-filled cast iron or steel column radiator and heats it electrically, either as the only heat source or as a dual fuel option alongside central heating. Choose 1200W, 1500W or 2000W with a colour-matched flex.
Why choose a Carron heating element
- Turns a column radiator into a standalone electric heater or adds a dual fuel option.
- Built-in analogue thermostat (about 10 to 65C) with frost protection.
- IPX4 rated, splash resistant.
- Four finishes with a matching flex.
- Optional safety release valve for standalone use.
Free delivery to England and WalesUsually 3 to 10 working days. Large items come to the kerbside, often on a pallet, and the courier books a day with you. Scotland and Northern Ireland charges are shown at checkout.
- 30 days to change your mind
- Manufacturer's UK warranty
- UK suppliers
- 2 yearsWarranty
About this product
Will it suit your space?
Carron lists the minimum number of radiator sections for each element on every cast iron radiator page, with a higher number for full output. Choose the wattage to suit the radiator and the room.
Specifications
| Model | Carron electric radiator heating element (ELE001 to ELE011) |
|---|---|
| Power | 1200W, 1500W or 2000W |

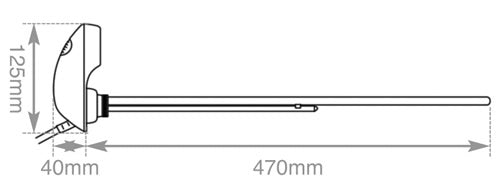

| Element length | 470mm (1200W), 520mm (1500W), 570mm (2000W) |
| Connection | 1/2 inch BSP (1200W); 3/4 inch BSP (1500W and 2000W) |
| Supply | 230V mains |
| Thermostat | Built-in analogue, about 10 to 65C, with frost protection |
| Rating | IPX4 |
| Finishes | Anthracite (black flex), satin (grey flex), quartz (white flex, 1200W), gold (gold flex, 1200W and 1500W) |
| Installation | Horizontal only |
| Guarantee | 2 years |
Installation and safety
A qualified electrician must install the element, horizontally, in a radiator filled with water and inhibitor. When the radiator is not connected to the central heating, fill it to about 95% to leave room for expansion and fit a safety release valve; when it is connected, keep at least one radiator valve open while the element is on.
Questions
Which radiators can it go in?
Carron says its elements suit cast iron and steel column radiators, and lists all its cast iron radiators as compatible. Each radiator page gives the minimum number of sections for each element.
Do I need the safety release valve?
Only when the radiator is used as a standalone electric heater, not connected to the central heating. Carron says a safety release valve (ELE013) must then be fitted, which you can add as an option here.
Which thread does it need?
The 1200W element needs a 1/2 inch BSP connection. The 1500W and 2000W elements need a 3/4 inch BSP connection.
Can it be used in a bathroom?
It is rated IPX4, which Carron describes as splash resistant and suitable for bathroom use. Its instructions say a bathroom radiator fitted with an element must be at least 60cm from a bath, shower or basin and never above a bath, and must be hard-wired by a qualified electrician.
Is there a guarantee?
Carron gives the elements a 2 year guarantee.
Use it with a Carron cast iron radiator or browse indoor heating.
