Carron Victorian 2 Column Cast Iron Radiator, Made to Order

About this product

Will it suit your space?

Choose the height for the wall or window, then the number of sections for the heat you need. As a rough guide, allow about 1kW (1,000W) for every 14 cubic metres of room volume in an average room; older, draughty or high-ceilinged rooms need more, and a heat-loss check by your heating engineer gives the right answer.

Sizes and heat output

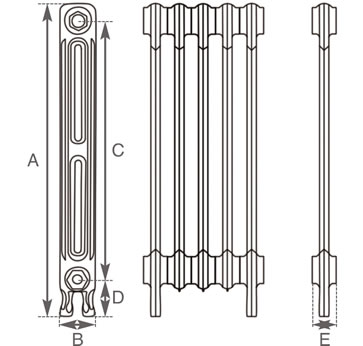

Height	Depth	Pipe centres (vertical)	Section width	Output per section at ΔT50	10 sections at ΔT50	Weight per section (empty)
615mm	70mm	500mm	53mm	45W (153 BTU)	450W	2.5kg

Specifications

Model	Carron Victorian 2 Column cast iron radiator (LD183/LD184)
Heights	615mm
Depth	70mm
Section width	53mm
Sections	6 to 20 (other lengths to order)
Finish	Primer, painted in a colour of your choice, or hand burnished
Heat output range	0.3 to 0.9 kW at ΔT50 across the sizes listed
Material	Cast iron
Guarantee	Lifetime (Carron)

Installation and safety

Cast iron is heavy: a 10 section radiator at 615mm high weighs about 25kg empty. Have it fitted by a qualified plumber or heating engineer, check the floor can take the weight, and measure the delivered radiator before fixing pipework.

Questions

How long will my radiator be?

Each section is about 53mm wide, so 10 sections are roughly 530mm long before the end fittings. Carron gives sizes as a guide because each radiator is hand assembled.

Which finish should I choose?

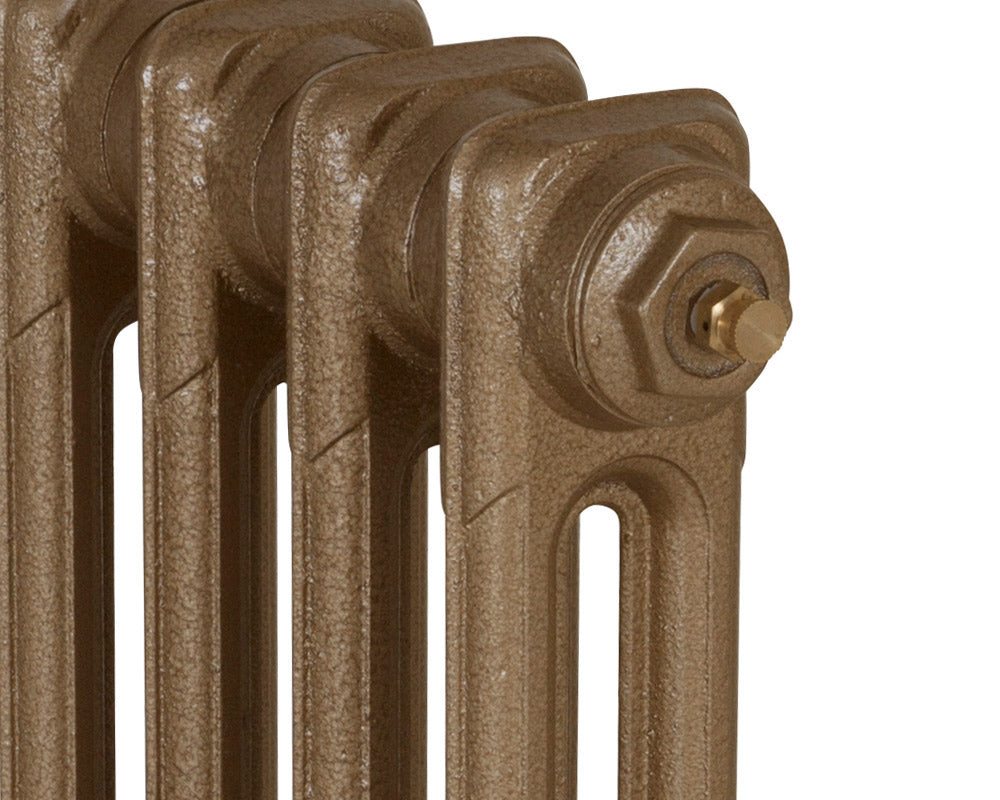

Primer is ready for you to paint on site. Painted means Carron paints it in its own spray shop in a colour of your choice, which we confirm with you after you order. Hand burnished is a hand-finished metallic look.

Can it run on electricity?

Yes, with a Carron electric heating element. At 615mm high Carron lists at least 10 sections for the 1200W element (27 for its full output), 11 for the 1500W (33) and 12 for the 2000W (44).

Are valves and wall stays included?

No, they are sold separately. Carron lists its Thistle, stainless steel and galvanised wall stays as compatible with this model, and its Crocus, Kingsgrove and Daisy valves are made for its radiators.

Is there a guarantee?

Carron gives its cast iron radiators a lifetime guarantee.

Add a pair of Carron radiator valves or an electric heating element, and see more indoor heating from Carron.
