Carron Victorian 4 Column Low Level Cast Iron Radiator
£199.00
Shipping calculated at checkout.
This is the low-level 325mm version of the Carron Victorian 4 Column, for fitting under windows and in bays where a taller radiator will not go.
Why choose the Victorian 4 Column Low Level
- Only 325mm high for under windows and in bays.
- Assembled to order, 6 to 20 sections, in primer, painted in your colour or hand burnished.
- 41W per section at ΔT50, with a lifetime Carron guarantee.
Complete your setup
Matching extras that go with it. Tick any you want.
- Details about Carron Crocus Thermostatic Radiator Valve
- Details about Carron Kingsgrove Angled Thermostatic Radiator Valve
- Details about Carron Kingsgrove Corner Thermostatic Radiator Valve
- Details about Carron Crocus Manual Radiator Valve
- Details about Carron Daisy Wheel Manual Radiator Valve Set
- Details about Carron Electric Radiator Heating Element, 1200W to 2000W
Free delivery to England and WalesAssembled to order by Carron, so allow longer than our standard delivery times. Ask us for the current lead time before you order. Scotland and Northern Ireland charges are shown at checkout.
Painted and hand burnished finishes are done to your order, so radiators in those finishes can't be returned for a change of mind. Radiators in primer can be.
- Made to order
- Manufacturer's UK warranty
- UK suppliers
About this product
Will it suit your space?
Choose the height for the wall or window, then the number of sections for the heat you need. As a rough guide, allow about 1kW (1,000W) for every 14 cubic metres of room volume in an average room; older, draughty or high-ceilinged rooms need more, and a heat-loss check by your heating engineer gives the right answer.

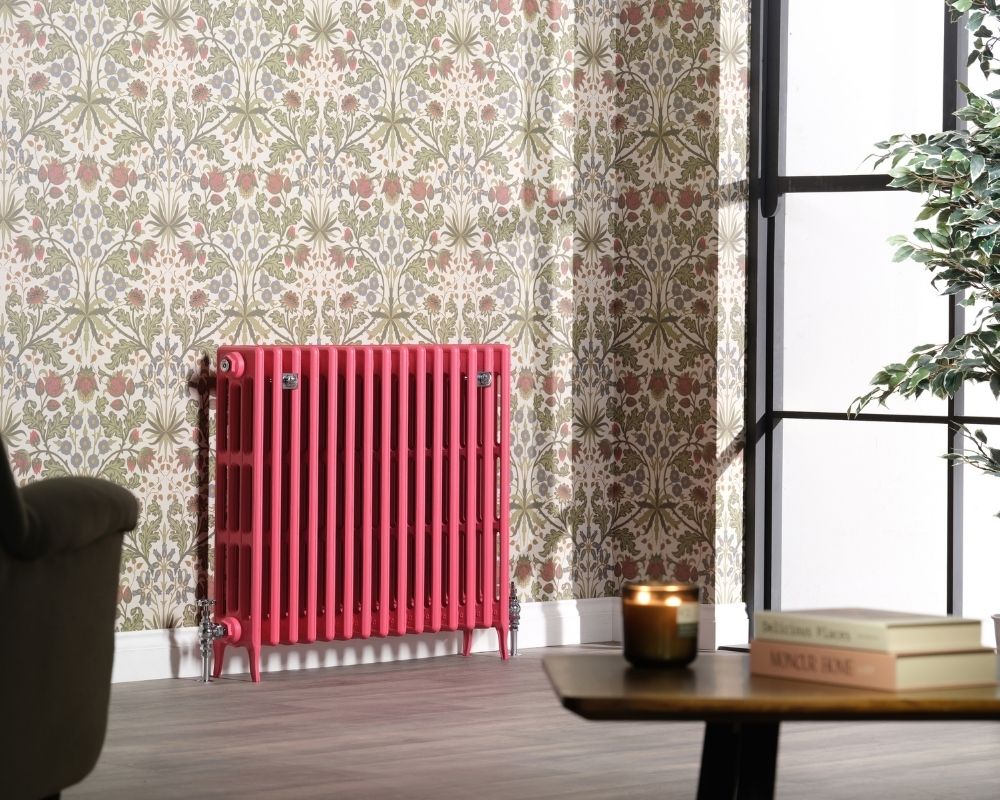

Low radiators like this one are made to sit under window sills and in bays, where they warm the cold air coming off the glass.

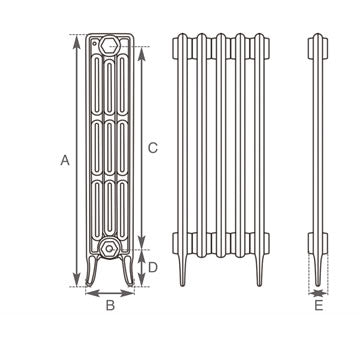

Sizes and heat output
| Height | Depth | Pipe centres (vertical) | Section width | Output per section at ΔT50 | 10 sections at ΔT50 | Weight per section (empty) |
|---|---|---|---|---|---|---|
| 325mm | 145mm | 205mm | 50mm | 41W (139 BTU) | 410W | 3.2kg |
Specifications
| Model | Carron Victorian 4 Column Low Level cast iron radiator (TBK126/TBK127) |
|---|---|
| Heights | 325mm |
| Depth | 145mm |
| Section width | 50mm |
| Sections | 6 to 20 (other lengths to order) |
| Finish | Primer, painted in a colour of your choice, or hand burnished |
| Heat output range | 0.2 to 0.8 kW at ΔT50 across the sizes listed |
| Material | Cast iron |
| Guarantee | Lifetime (Carron) |
Installation and safety
Cast iron is heavy: a 10 section radiator at 325mm high weighs about 32kg empty. Have it fitted by a qualified plumber or heating engineer, check the floor can take the weight, and measure the delivered radiator before fixing pipework.
Questions
How long will my radiator be?
Each section is about 50mm wide, so 10 sections are roughly 500mm long before the end fittings. Carron gives sizes as a guide because each radiator is hand assembled.
Which finish should I choose?
Primer is ready for you to paint on site. Painted means Carron paints it in its own spray shop in a colour of your choice, which we confirm with you after you order. Hand burnished is a hand-finished metallic look.
Can it run on electricity?
Yes, with a Carron electric heating element. At 325mm high Carron lists at least 11 sections for the 1200W element (29 for its full output), 12 for the 1500W (37) and 13 for the 2000W (49).
Are valves and wall stays included?
No, they are sold separately. Carron lists its Thistle, stainless steel and galvanised wall stays as compatible with this model, and its Crocus, Kingsgrove and Daisy valves are made for its radiators.
Is there a guarantee?
Carron gives its cast iron radiators a lifetime guarantee.
Add a pair of Carron radiator valves or an electric heating element, and see more indoor heating from Carron.
