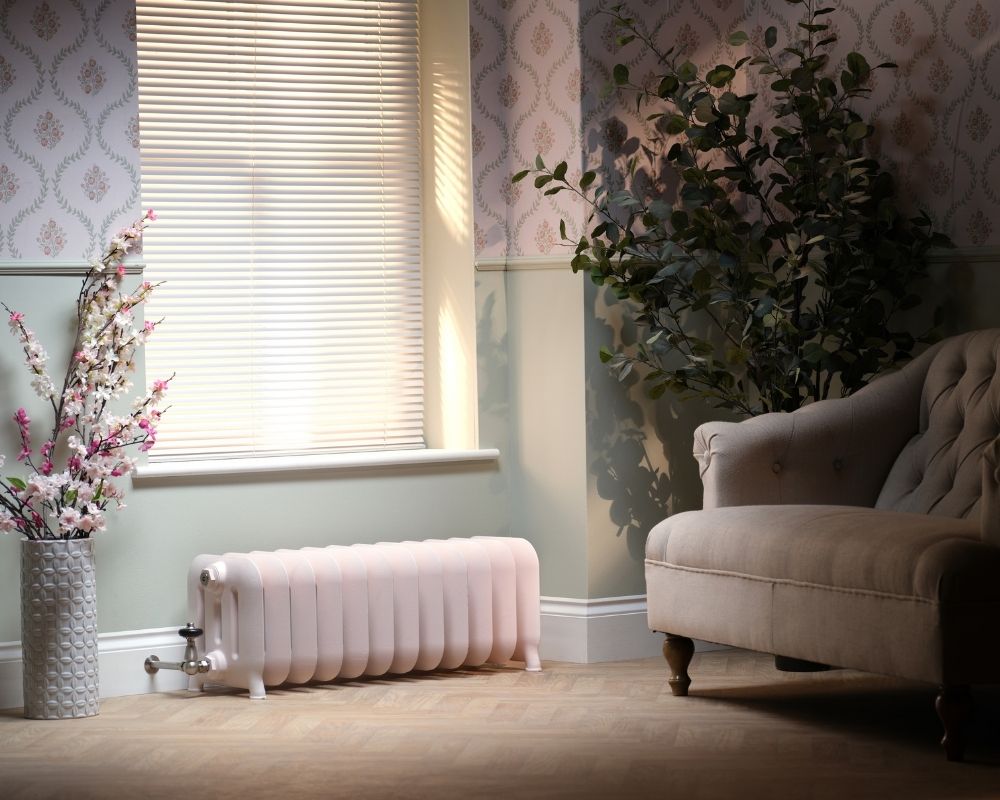

Carron Duchess 4 Column Low Level cast iron radiator, duchess Farrow and Ball middleton pink
  • Carron Duchess 4 Column Low Level cast iron radiator, duchess Farrow and Ball middleton pink

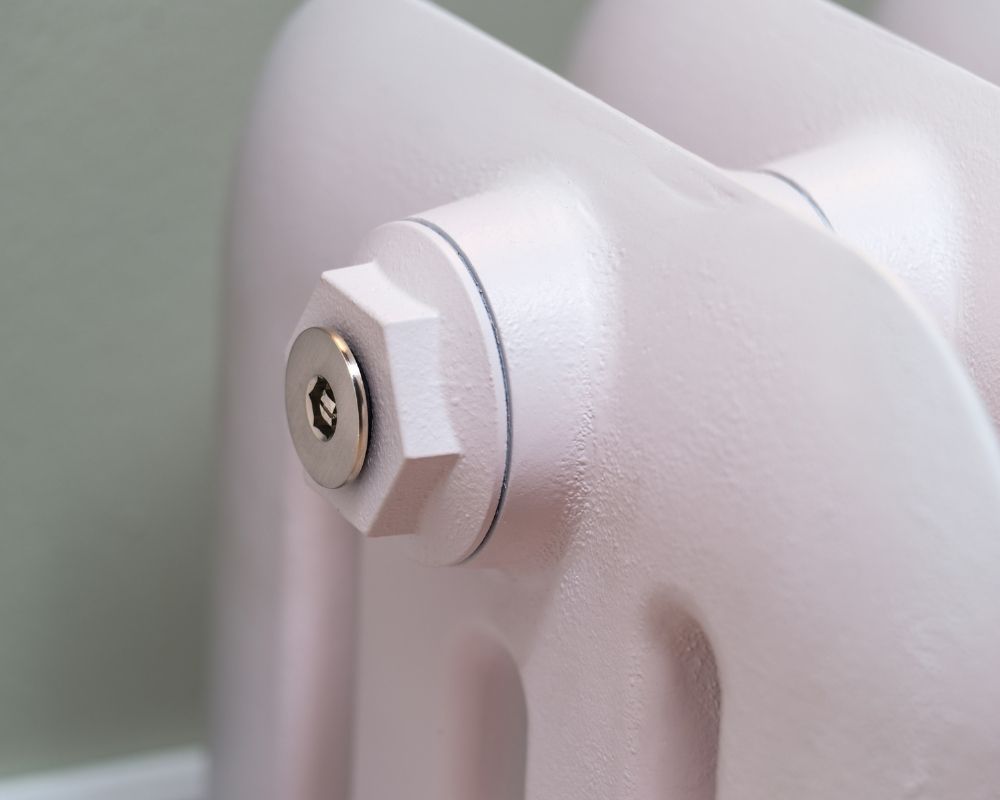

  • Carron Duchess 4 Column Low Level cast iron radiator, duchess detail

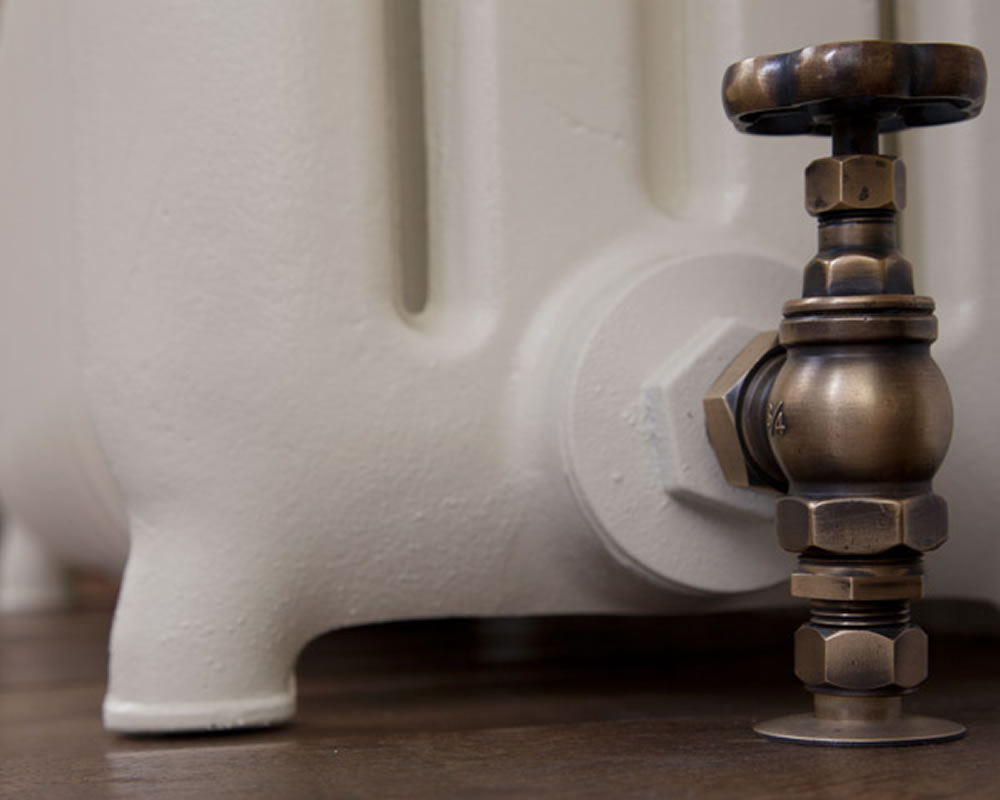

  • Carron Duchess 4 Column Low Level cast iron radiator, duchess parchment white feet

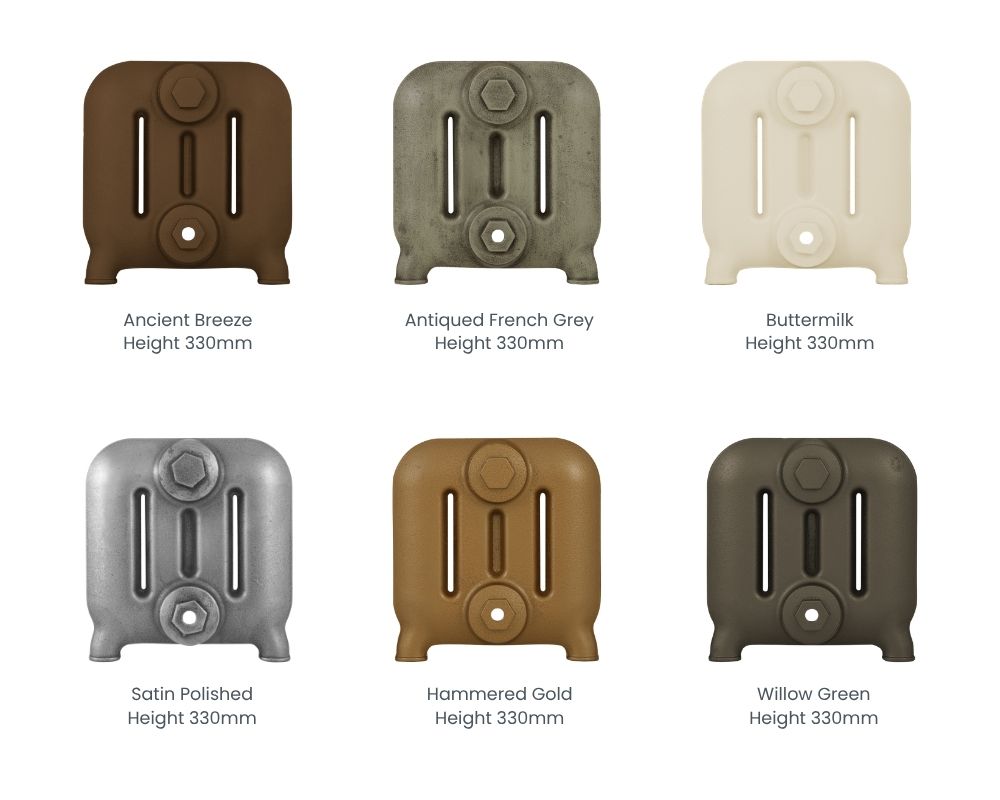

  • Carron Duchess 4 Column Low Level cast iron radiator, duchess in various sizes and finishes

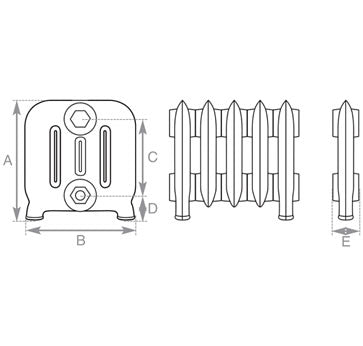

  • Carron Duchess 4 Column Low Level cast iron radiator section drawing showing dimensions A to E
Carron Duchess 4 Column Low Level Cast Iron Radiator

Carron

Carron Duchess 4 Column Low Level Cast Iron Radiator

£359.00
Shipping calculated at checkout.

The Carron Duchess 4 Column is a low cast iron radiator, just 330mm high, made for spaces under low window sills. Its 4 column sections are 310mm deep.

Why choose the Duchess 4 Column Low Level

  • Only 330mm high, for low window sills.
  • Deep 4 column sections for a good output from a low radiator.
  • Assembled to order, 6 to 20 sections, in primer, painted in your colour or hand burnished.
  • 84W per section at ΔT50, with a lifetime Carron guarantee.
Full details and specifications
Sections
Finish

Complete your setup

Matching extras that go with it. Tick any you want.

  • Details
  • Details
  • Details
  • Details
  • Details
  • Details
Free delivery to England and WalesAssembled to order by Carron, so allow longer than our standard delivery times. Ask us for the current lead time before you order. Scotland and Northern Ireland charges are shown at checkout.

Painted and hand burnished finishes are done to your order, so radiators in those finishes can't be returned for a change of mind. Radiators in primer can be.

  • Made to order
  • Manufacturer's UK warranty
  • UK suppliers

About this product

Will it suit your space?

Choose the height for the wall or window, then the number of sections for the heat you need. As a rough guide, allow about 1kW (1,000W) for every 14 cubic metres of room volume in an average room; older, draughty or high-ceilinged rooms need more, and a heat-loss check by your heating engineer gives the right answer.

Low radiators like this one are made to sit under window sills and in bays, where they warm the cold air coming off the glass.

Sizes and heat output

Height Depth Pipe centres (vertical) Section width Output per section at ΔT50 10 sections at ΔT50 Weight per section (empty)
330mm 310mm 205mm 75mm 84W (286 BTU) 840W 8.3kg

Specifications

Model Carron Duchess 4 Column Low Level cast iron radiator (TBK124/TBK125)
Heights 330mm
Depth 310mm
Section width 75mm
Sections 6 to 20 (other lengths to order)
Finish Primer, painted in a colour of your choice, or hand burnished
Heat output range 0.5 to 1.7 kW at ΔT50 across the sizes listed
Material Cast iron
Guarantee Lifetime (Carron)

Installation and safety

Cast iron is heavy: a 10 section radiator at 330mm high weighs about 83kg empty. Have it fitted by a qualified plumber or heating engineer, check the floor can take the weight, and measure the delivered radiator before fixing pipework.

Questions

How long will my radiator be?

Each section is about 75mm wide, so 10 sections are roughly 750mm long before the end fittings. Carron gives sizes as a guide because each radiator is hand assembled.

Which finish should I choose?

Primer is ready for you to paint on site. Painted means Carron paints it in its own spray shop in a colour of your choice, which we confirm with you after you order. Hand burnished is a hand-finished metallic look.

Can it run on electricity?

Yes, with a Carron electric heating element. At 330mm high Carron lists at least 8 sections for the 1200W element (14 for its full output), 8 for the 1500W (18) and 9 for the 2000W (24).

Are valves included?

No, valves are sold separately. Carron does not list wall stays for this low model, which stands on its own feet.

Is there a guarantee?

Carron gives its cast iron radiators a lifetime guarantee.

Add a pair of Carron radiator valves or an electric heating element, and see more indoor heating from Carron.
