Carron Rococo 2 Column Cast Iron Radiator

About this product

Will it suit your space?

Choose the height for the wall or window, then the number of sections for the heat you need. As a rough guide, allow about 1kW (1,000W) for every 14 cubic metres of room volume in an average room; older, draughty or high-ceilinged rooms need more, and a heat-loss check by your heating engineer gives the right answer.

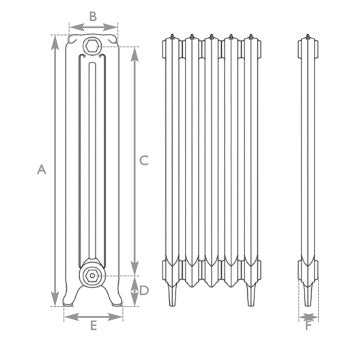

Sizes and heat output

Height	Depth	Pipe centres (vertical)	Section width	Output per section at ΔT50	10 sections at ΔT50	Weight per section (empty)
560mm	185mm	400mm	73mm	85W (288 BTU)	850W	8.0kg
960mm	185mm	787mm	76mm	143W (489 BTU)	1430W	16.6kg

Specifications

Model	Carron Rococo 2 Column cast iron radiator (LD232/LD233, TBK088/TBK089)
Heights	560mm or 960mm
Depth	185mm
Section width	73mm, 76mm
Sections	6 to 20 (other lengths to order)
Finish	Primer, painted in a colour of your choice, or hand burnished
Heat output range	0.5 to 2.9 kW at ΔT50 across the sizes listed
Material	Cast iron
Guarantee	Lifetime (Carron)

Installation and safety

Cast iron is heavy: a 10 section radiator at 560mm high weighs about 80kg empty. Have it fitted by a qualified plumber or heating engineer, check the floor can take the weight, and measure the delivered radiator before fixing pipework.

Questions

How long will my radiator be?

Each section is about 73mm wide, so 10 sections are roughly 730mm long before the end fittings. Carron gives sizes as a guide because each radiator is hand assembled.

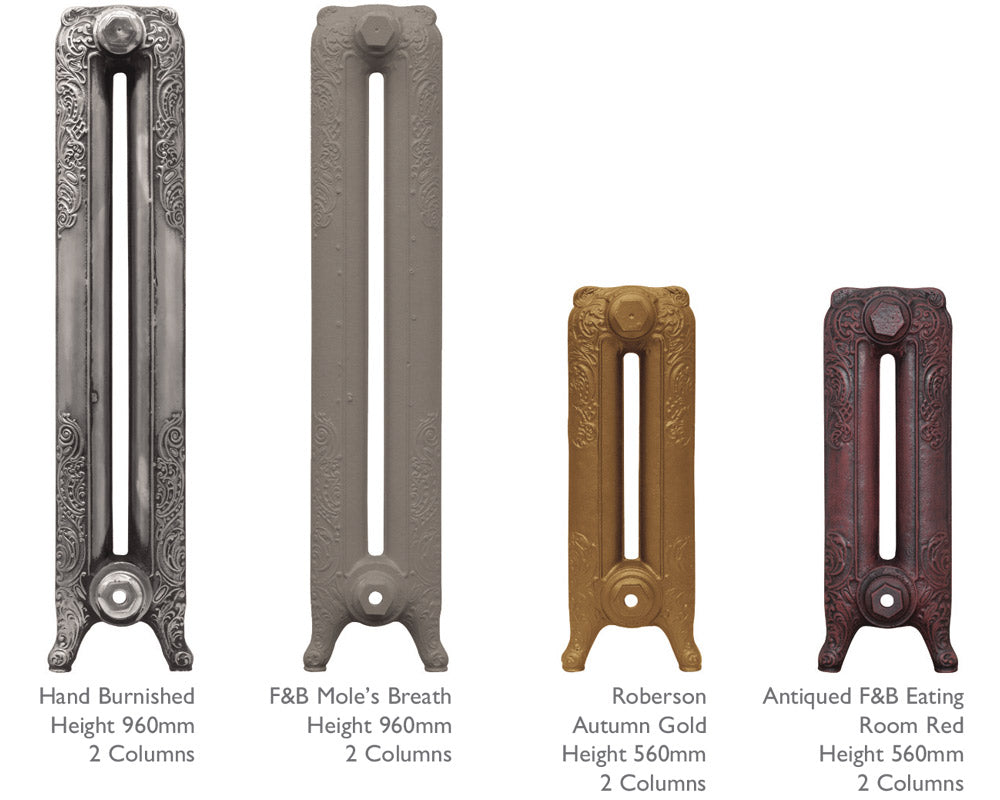

Which finish should I choose?

Primer is ready for you to paint on site. Painted means Carron paints it in its own spray shop in a colour of your choice, which we confirm with you after you order. Hand burnished is a hand-finished metallic look.

Can it run on electricity?

Yes, with a Carron electric heating element. At 560mm high Carron lists at least 8 sections for the 1200W element (14 for its full output), 9 for the 1500W (18) and 9 for the 2000W (24).

Are valves and wall stays included?

No, they are sold separately. Carron lists its Thistle, stainless steel and galvanised wall stays as compatible with this model, and its Crocus, Kingsgrove and Daisy valves are made for its radiators.

Is there a guarantee?

Carron gives its cast iron radiators a lifetime guarantee.

Add a pair of Carron radiator valves or an electric heating element, and see more indoor heating from Carron.

Delivery

Free delivery to England and Wales. Assembled to order by Carron, so allow longer than our standard delivery times. Ask us for the current lead time before you order. Scotland and Northern Ireland charges are shown at checkout.

Delivery policy

Returns

Painted and hand burnished finishes are done to your order, so radiators in those finishes can't be returned for a change of mind. Radiators in primer can be.

You have 30 days from delivery to change your mind, with no restocking fees. Returns after day 14 must be unused, uninstalled and in the original packaging. If we collect, it costs £90 for a single pallet item or £150 for two-person and multi-pallet deliveries; garden buildings, and collections from Scotland, Northern Ireland, the Highlands and islands, are priced before booking and never cost more than £250. Items made to your specification are excluded, and faulty or damaged goods are collected free.

Return and refund policy

Warranty

The manufacturer's warranty terms apply, which can include registering the product, professional installation and annual servicing. Your rights under the Consumer Rights Act are not affected.

Installation and safety

Follow the manufacturer's instructions supplied with the product.

Not sure it will fit?

Send us a photo and the measurements of your room, fireplace or garden and we’ll check it for you.
